MULTI-COLOR LASER DISPLAY APPLICATIONS

International Laser Productions MM system provides full color balanced output for
SKYSHOWS - THEME PARK - BILLBOARD ADVERTISING
applications requiring extra laser power in larger environments or outdoor situations where high ambient light levels, distance and projection size are determining factors.

PRO SYSTEM SPECIFICATION

DIODE 30 - 50 Watt White RGB Laser.
Dimensions: 30 L= 550mm x H=385mm x D=205mm
Dimensions: 50 L= 773mm x H=385mm x D=205mm
Weight: 30 = 32kg Weight: 50 = 42kg
PC Control | DMX
Full temperature control with over temperature switch..

Laser Software Options:
See Pricelist for Further Details
ILP Lasermedia Latest Edition

Multimedia PC or Laptop

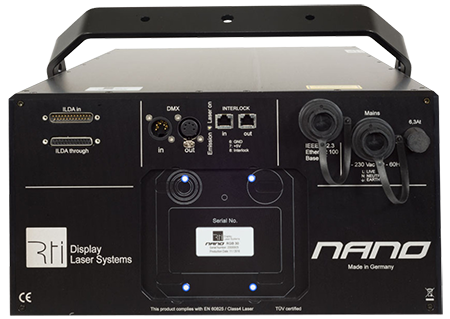

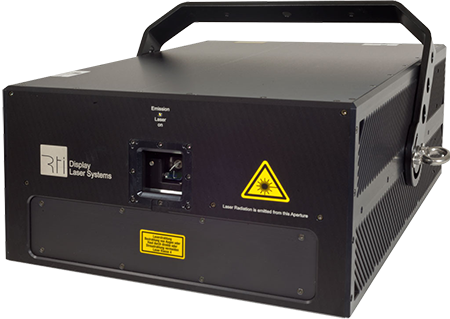

Precision " RTI NANO" Projector enclosure
>40kpps@8° ILDA, max. 50° (@25kpps); optional: CT-6215HP Big Boy Driver, 60kpps@8° ILDA, max. 60° (@30kpps).
Electronics and Cabling

OUTDOOR - ADVERTISING Configurations
Inclusive of 12 month Warranty Parts & Labor

SOFTWARE

Laser Software Options:
See Pricelist for Further Details

INSTALLATION

Water Proofing
Electric Gauze Screens
Water Screens

LASER SPECIFICATIONS

DIODE RGB 50.0 Watt
Laser output mw RED GREEN BLUE 1300 1800 1200
Wavelength nm 638 520 450
Beam Diameter mm 3.0 - 6.0mm
Divergence mrad 1.0<

Operating temp 10-40

Operating Lifetime hrs 5000

Operating Voltage 94-240VAC
